J2A040 Java Card
jcop j3r180 card

NXP 80K J2A080 Java Card

The NXP P60 JCOP2 J2A080 Java Card is a highly secure dual-interface smart card chip that supports Java Card 2.2.2 and GlobalPlatform 2.1.1. Featuring RSA/AES encryption capabilities, it is widely utilised in financial payments, transportation cards, identity authentication, and IoT security applications.

Click to consult

Descripción

J2A080 Java Card is a secure and programmable smart card platform designed for multi-application solutions requiring advanced security and reliable performance. Based on NXP JCOP technology, it supports flexible application development and secure applet management, making it suitable for financial services, digital identity, access control, transportation, and authentication systems. With strong security features and proven reliability, J2A080 Java Card provides a dependable solution for organizations implementing secure smart card applications across various industries.

J2A080 Java Card Key Technical Features:

High-Security Operating System Platform:
Powered by the JCOP 2.1.1 operating system, J2A080 Java Card supports Java Card 2.2.2 and GlobalPlatform 2.1.1 standards, providing secure application isolation and a Trusted Execution Environment (TEE) for multi-application smart card solutions. It enables secure deployment and management of multiple applications on a single card, making it suitable for secure identity, payment, access control, and authentication applications.

Support for Mainstream Cryptographic Algorithms:
Featuring a built-in hardware encryption module, it supports globally recognised cryptographic algorithms—such as RSA (up to 2048 bits) and AES—thereby meeting the stringent security requirements of financial transactions, identity authentication, and similar applications.

Dual-Interface Communication Design:
NXP JCOP2 J2A080 Card simultaneously supports both contact (ISO/IEC 7816) and contactless (ISO/IEC 14443 Type A) interfaces, ensuring compatibility with a wide range of terminal devices, including POS machines, card readers, and access control systems.

Medium-to-High Speed ​​Data Transmission:
Contactless communication speeds reach 106 kbit/s, while the contact interface supports standard T=0 and T=1 protocols, effectively meeting the efficiency demands of daily payment and identity verification operations.

Large-Capacity Storage and Multi-Application Support:
80K J2A080 Java Card offers 80 KB of EEPROM storage space, allowing for the loading of multiple independent, secure applications (such as banking services, transit applications, and access control keys) to enable “one card, multiple uses.”

J2A080 Smart Card Product Parameters

Parameter Category Technical Specifications
Chip Platform NXP P60 JCOP2 J2A080
Operating System JCOP 2.1.1, Java Card 2.2.2, GlobalPlatform 2.1.1
Security Protocols Supports GlobalPlatform Secure Channel (SCP01/02)
Encryption Algorithms RSA (1024/2048-bit), AES (128/256-bit)
Storage Capacity 80 KB EEPROM; supports multi-application partition management
Communication Interfaces ISO/IEC 7816 (Contact), ISO/IEC 14443 Type A (Contactless)
Communication Speed Contactless: 106 kbit/s; Contact: Supports T=0/T=1 protocols
Operating Voltage 1.8V / 3V / 5V Adaptive
Operating Temperature -25°C ~ +85°C
Physical Form Factor Customizable Form Factors: Standard Card, Mini SIM, Micro SIM, Embedded Packages, etc.
Certifications CC EAL5+ (Typical), EMVCo, GlobalPlatform, PCI PTS

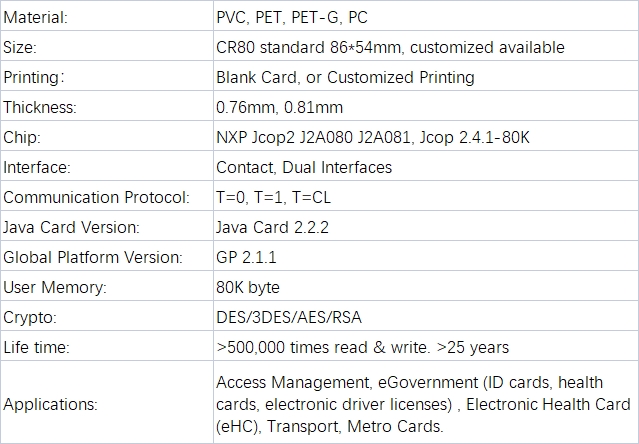

Product Parameters

NXP Jcop2 80K J2A080 Java Card
Material PVC, PET, PET-G, PC
Size CR80 standard 86*54mm, customised available
Printing Blank Card, or Customised Printing
Thickness 0.76mm, 0.81mm
Chip NXP Jcop2 J2A080 J2A081, Jcop 2.4.1-80K
Interface Contact, Dual Interfaces
Communication Protocol T=0, T=1, T=CL
Java Card Version Java Card 2.2.2
Global Platform Version GP 2.1.1
User Memory 80K byte
Crypto DES/3DES/AES/RSA
Life time >500,000 times read & write. >25 years
Applications Access Management
eGovernment (ID cards, health cards, electronic driver licenses)
Electronic Health Card (eHC)
Transport
Metro Cards

Main Applications

Financial Payment Cards
As a PBOC-compliant chip, the Digital Payment Security Card is widely utilised in financial IC cards issued by domestic banks, supporting both contactless “QuickPass” and contact-based transactions while ensuring transaction security.

Digital Payment Security Card

City & Transit Cards
Integrated into public bus and subway systems, the J2A080 Transit Card enables rapid entry/exit and micro-payments; it has already been deployed on a large scale across numerous cities.

J2A080 Transit Card

Corporate & Campus Access Cards
Used for employee and student ID cards, the Smart Access Card integrates functions such as access control permissions, attendance tracking, and cafeteria payments, thereby enhancing management efficiency.

Smart Access Card

Government Identity Credentials
Applied to electronic documents such as social security cards and residence permits, the Java Card provides anti-counterfeiting measures, data encryption, and identity authentication services.

Java Card

IoT Security Elements (SE)
Embedded as a secure element within smart terminals—such as POS machines and industrial equipment—the J2A080 Java Card safeguards firmware updates and secures communication links.

J2A080 Java Card

Cases

International Applications:

Secure Digital Identity
Deployed in Southeast Asia for electronic passports and border management cards, providing high-security identity verification solutions through Electronic ID Smart Card technology and secure Java Card-based authentication.

ID Smart Card

Biometric Identity Protection
Integrated into national ID card systems in select Middle Eastern countries, supporting the encrypted storage of biometric data with Smart Access Card capabilities for secure citizen identification and data protection.

Contactless Payment Solutions
Utilised in e-wallet and campus card systems in various European cities, enabling NFC Payment Smart Card functions and Digital Payment Security Card solutions for cashless payments within university campuses.

NFC Payment Smart Card

Domestic Applications:

Secure Digital Payments
Adopted by numerous commercial banks for issuing financial IC debit and credit cards, supporting Digital Payment Security Card applications and NFC Payment Smart Card solutions for secure UnionPay-standard contactless transactions.

NFC Payment Smart Card

Smart Transportation Systems
Serves as the core chip for integrated transit cards within public transportation systems in major cities—such as Beijing, Shanghai, and Shenzhen—enabling Public Transportation Smart Card and NFC Transit Card functions with seamless inter-city interoperability.

NFC Transit Card

Digital Government Services
Employed in pilot projects for the third-generation social security card in various provinces and municipalities, providing Electronic ID Smart Card capabilities for government services, including medical insurance, pension management, and secure identity authentication.

Electronic ID Smart Card
