NXP JCOP2 80K Smart Card for eID Payment

The NXP P60 JCOP2 J2A080 Java Smart Card is a highly secure dual-interface smart card chip that supports Java Card 2.2.2 and GlobalPlatform 2.1.1. Featuring RSA/AES encryption capabilities, it is widely utilised in financial payments, transportation cards, identity authentication, and IoT security applications.

Click to consult

Description

Key Technical Features:

High-Security Operating System Platform:
Powered by the JCOP 2.1.1 operating system, it supports Java Card 2.2.2 and GlobalPlatform 2.1.1 standards, providing secure application isolation and a Trusted Execution Environment suitable for scenarios involving the coexistence of multiple applications.

Support for Mainstream Cryptographic Algorithms:
Featuring a built-in hardware encryption module, it supports globally recognised cryptographic algorithms—such as RSA (up to 2048 bits) and AES—thereby meeting the stringent security requirements of financial transactions, identity authentication, and similar applications.

Dual-Interface Communication Design:
It simultaneously supports both contact (ISO/IEC 7816) and contactless (ISO/IEC 14443 Type A) interfaces, ensuring compatibility with a wide range of terminal devices, including POS machines, card readers, and access control systems.

Medium-to-High Speed ​​Data Transmission:
Contactless communication speeds reach 106 kbit/s, while the contact interface supports standard T=0 and T=1 protocols, effectively meeting the efficiency demands of daily payment and identity verification operations.

Large-Capacity Storage and Multi-Application Support:
It offers 80 KB of EEPROM storage space, allowing for the loading of multiple independent, secure applications (such as banking services, transit applications, and access control keys) to enable “one card, multiple uses.”

Product Parameters

Parameter Category Technical Specifications
Chip Platform NXP P60 JCOP2 J2A080
Operating System JCOP 2.1.1, Java Card 2.2.2, GlobalPlatform 2.1.1
Security Protocols Supports GlobalPlatform Secure Channel (SCP01/02)
Encryption Algorithms RSA (1024/2048-bit), AES (128/256-bit)
Storage Capacity 80 KB EEPROM; supports multi-application partition management
Communication Interfaces ISO/IEC 7816 (Contact), ISO/IEC 14443 Type A (Contactless)
Communication Speed Contactless: 106 kbit/s; Contact: Supports T=0/T=1 protocols
Operating Voltage 1.8V / 3V / 5V Adaptive
Operating Temperature -25°C ~ +85°C
Physical Form Factor Customizable Form Factors: Standard Card, Mini SIM, Micro SIM, Embedded Packages, etc.
Certifications CC EAL5+ (Typical), EMVCo, GlobalPlatform, PCI PTS

Product Parameters

NXP Jcop2 80K J2A080 Java Card
Material PVC, PET, PET-G, PC
Size CR80 standard 86*54mm, customised available
Printing Blank Card, or Customised Printing
Thickness 0.76mm, 0.81mm
Chip NXP Jcop2 J2A080 J2A081, Jcop 2.4.1-80K
Interface Contact, Dual Interfaces
Communication Protocol T=0, T=1, T=CL
Java Card Version Java Card 2.2.2
Global Platform Version GP 2.1.1
User Memory 80K byte
Crypto DES/3DES/AES/RSA
Life time >500,000 times read & write. >25 years
Applications Access Management
eGovernment (ID cards, health cards, electronic driver licenses)
Electronic Health Card (eHC)
Transport
Metro Cards

Main Applications

Financial Payment Cards
As a PBOC-compliant chip, it is widely utilised in financial IC cards issued by domestic banks, supporting both contactless “QuickPass” and contact-based transactions while ensuring transaction security.

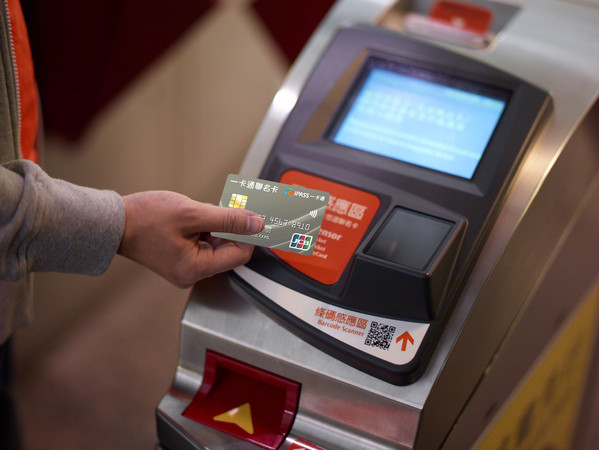

City & Transit Cards
Integrated into public bus and subway systems, it enables rapid entry/exit and micro-payments; it has already been deployed on a large scale across numerous cities.

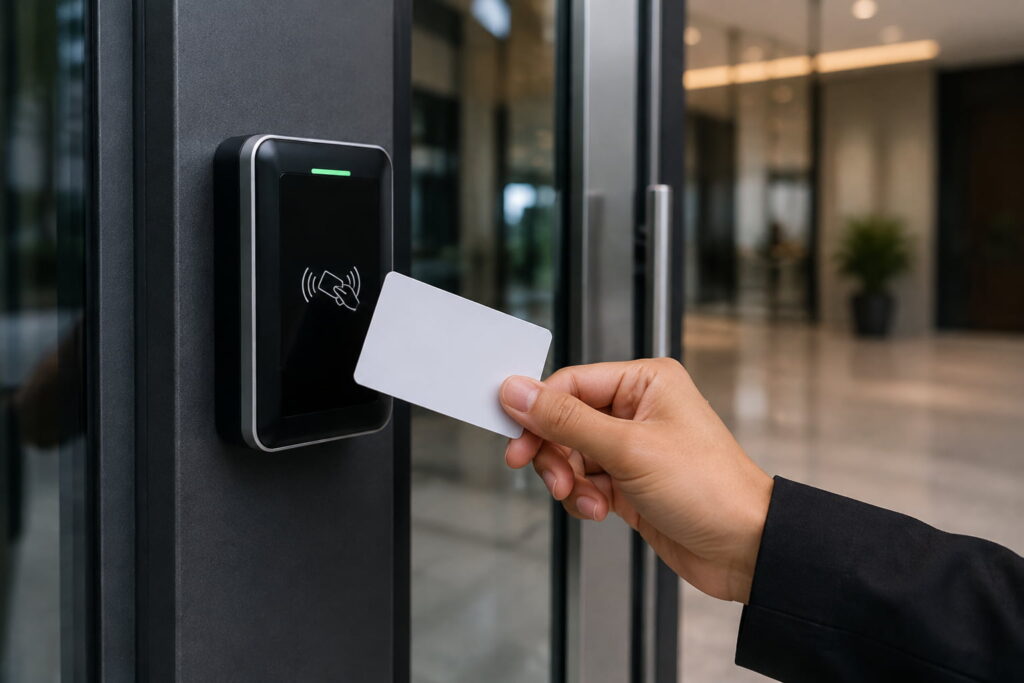

Corporate & Campus Access Cards
Used for employee and student ID cards, it integrates functions such as access control permissions, attendance tracking, and cafeteria payments, thereby enhancing management efficiency.

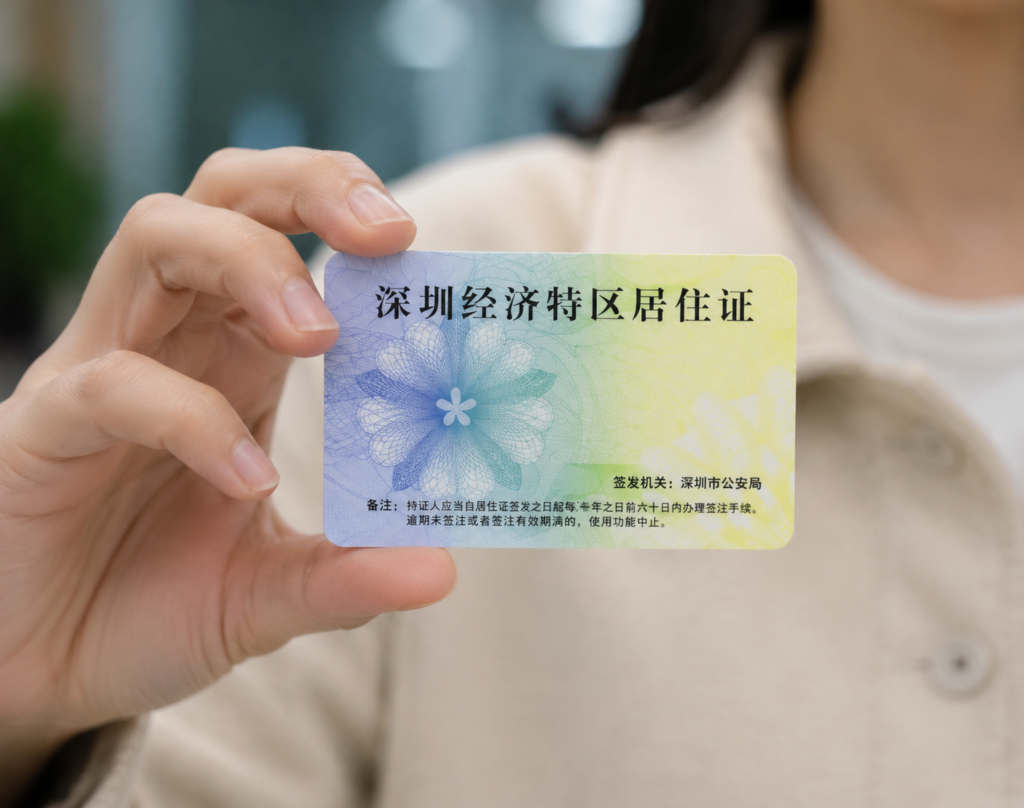

Government Identity Credentials
Applied to electronic documents such as social security cards and residence permits, it provides anti-counterfeiting measures, data encryption, and identity authentication services.

IoT Security Elements (SE)
Embedded as a secure element within smart terminals—such as POS machines and industrial equipment—it safeguards firmware updates and secures communication links.

NXP Jcop2 80K J2A080 Java Card Usage scenarios

Cases

International Applications:
Deployed in Southeast Asia for electronic passports and border management cards, providing high-security identity verification solutions.
Integrated into national ID card systems in select Middle Eastern countries, supporting the encrypted storage of biometric data.
Utilised in e-wallet and campus card systems in various European cities, enabling cashless payments within university campuses.

Domestic Applications:
Adopted by numerous commercial banks for the issuance of financial IC debit and credit cards, supporting UnionPay-standard contactless payments.
Serves as the core chip for integrated transit cards within public transportation systems in major cities—such as Beijing, Shanghai, and Shenzhen—facilitating inter-city interoperability.

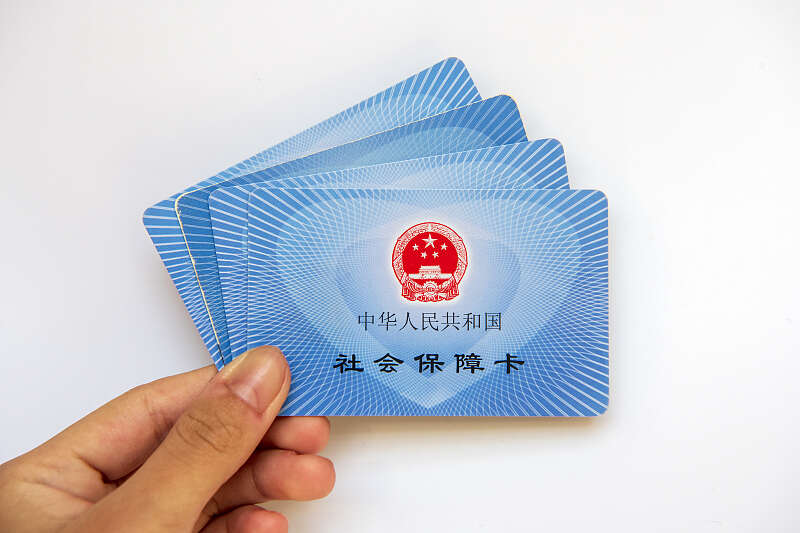

Employed in pilot projects for the third-generation social security card in various provinces and municipalities, hosting a range of government services, including medical insurance and pension management.
