NXP Ntag 213 Card

TK4100 125KHz RFID Proximity Card

The TK4100 is a read-only RFID card operating at a frequency of 125 kHz. It utilizes CMOS technology and is compatible with the EM format. This card supports various data encoding formats, including Manchester encoding, bi-phase encoding, and PSK encoding. As a proximity card, the TK4100 is widely used in applications such as bank cards, SIM cards, ID cards, and access control cards, providing stable and reliable read-only functionality. Furthermore, it can be customized according to your needs, with optional materials including PVC, PET, PET-G, or PC.

  1. 125 kHz stable frequency
  2. Supports Manchester encoding, biphasic encoding, and PSK encoding
  3. CMOS integrated circuit, compatible with EM format
  4. Standard size: 86 × 54 mm
  5. Materials available: PVC, PET, PET-G, or PC
Click to consult

Description

The TK4100 is a low-frequency (125 kHz) read-only RFID chip based on CMOS technology. It boasts extremely low power consumption and is compatible with 125 kHz RFID systems. Each chip contains a pre-programmed unique identifier (UID). TK4100 cards are widely used in access control systems, hotel room cards, ID cards, SIM cards, membership cards, and public transportation cards. The TK4100 card uses the standard CR80 size (86 × 54 mm) and is available in various materials, including PVC, PET, PET-G, and PC, with thickness options of 0.8-0.9 mm or 1.8 mm. We offer blank cards compatible with most card printers and provide custom printing services, allowing you to personalize your cards with logos, text, or images without affecting RFID performance. As a direct replacement for EM4100, HT4168, and 4100D chips, this proximity card can be easily deployed without any modifications to your existing system.

Key Features

Operating Frequency: 125 kHz.

Manufacturing Process and Stability: CMOS process, low power consumption, durable, and stable long-term read/write operations.

Modulation and Encoding: Supports multiple data encoding formats, including Manchester, Bipolar, and PSK.

Read-Only UID: The chip comes with a unique, fixed identifier (UID) at the factory, facilitating authentication and system binding; it does not support user-side rewriting.

Read Reliability: Stable performance under common access control card readers/sensor modules, with good resistance to environmental interference.

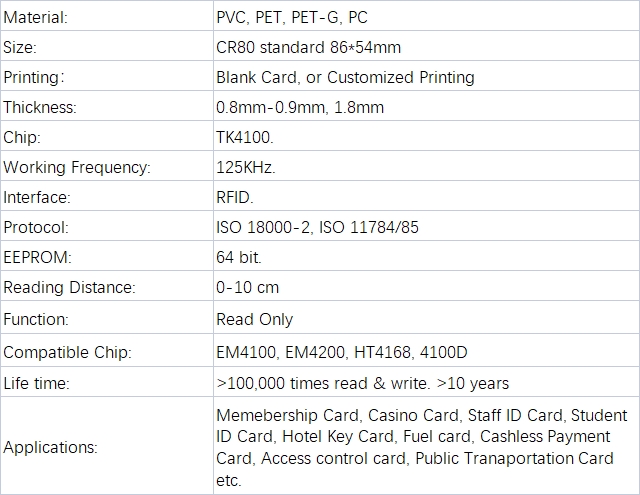

Product Parameters

TK4100 Card
Material PVC, PET, PET-G, PC
Size CR80 standard 86×54mm
Printing Blank Card, or Customized Printing
Thickness 0.8mm – 0.9mm, 1.8mm
Chip TK4100
Working Frequency 125 KHz
Interface RFID
Protocol ISO 18000-2, ISO 11784/85
EEPROM 64 bit
Reading Distance 0-10 cm
Function Read Only
Compatible Chip EM4100, TK4100, HT4168, 4100D
Lifetime >100,000 read & write cycles, >10 years
Applications Membership Card, Casino Card, Staff ID Card, Student ID Card, Hotel Key Card, Fuel Card, Cashless Payment Card, Access Control Card, Public Transportation Card, etc.

Application Areas



As a proximity card, the TK4100 is suitable for membership cards, casino cards, identity cards, student IDs, hotel room keys, fuel cards, cashless payment cards, access control cards, and public transportation cards.

FAQ

1. Can the UID of a TK4100 card be rewritten?
No. TK4100 is a Read-Only chip with a fixed factory-programmed UID that cannot be modified.

2. Is the TK4100 compatible with EM4100 systems?
Yes. TK4100 is designed to be compatible with EM-format systems and can be used as a direct replacement in most applications.

3. Does card printing affect RFID performance?
No. Printing on the card surface does not affect reading performance as long as proper materials and printing methods are used.

4. What is the typical read range?
Usually between 2 and 15 cm, depending on the reader’s antenna size, power, and environmental conditions.

5. Can it be used for encrypted or secure transactions?
No. TK4100 does not support cryptographic authentication. For secure applications, use MIFARE or Java Card solutions.
