Description
The NXP MIFARE Plus EV1 2K/4K (MF1P(H)x1y1 2K/4K) is a Common Criteria EAL5+ certified contactless smart card IC designed to deliver enhanced security, reliability, and flexibility in everyday card-based applications. Operating at 13.56 MHz and compliant with ISO/IEC 14443-3, the card supports read/write functions and is available in 2K or 4K EEPROM configurations. As a proven solution in access management and public transport, the MIFARE Plus EV1 enables seamless integration and secure migration from legacy MIFARE systems to modern encrypted infrastructure. DCCO Tech manufactures full-panel printable cards built with this chip, ensuring compatibility with all ID card printers for smooth personalization.
Key Features
Available in 2K or 4K byte EEPROM
Operates at 13.56 MHz
ISO/IEC 14443-3 compliant
Supports read/write operations
Common Criteria EAL5+ certified
Optional Random ID and proximity check
Seamless migration from MIFARE Classic to AES security
Personalization-friendly full-panel, printable blank cards
Why Choose the NXP MIFARE Plus EV1 2K/4K?
This chip bridges the gap between legacy systems and modern AES-encrypted security, making it ideal for secure identification, transport, and micropayment solutions. It supports multi-application environments, proximity checks, and optional Random UID functionality, enabling greater flexibility in both security policy and card issuance strategies. Its EAL5+ certification guarantees tamper-resistance suitable for high-risk environments.
Application Areas
Public Transportation Cards
Access Management Cards

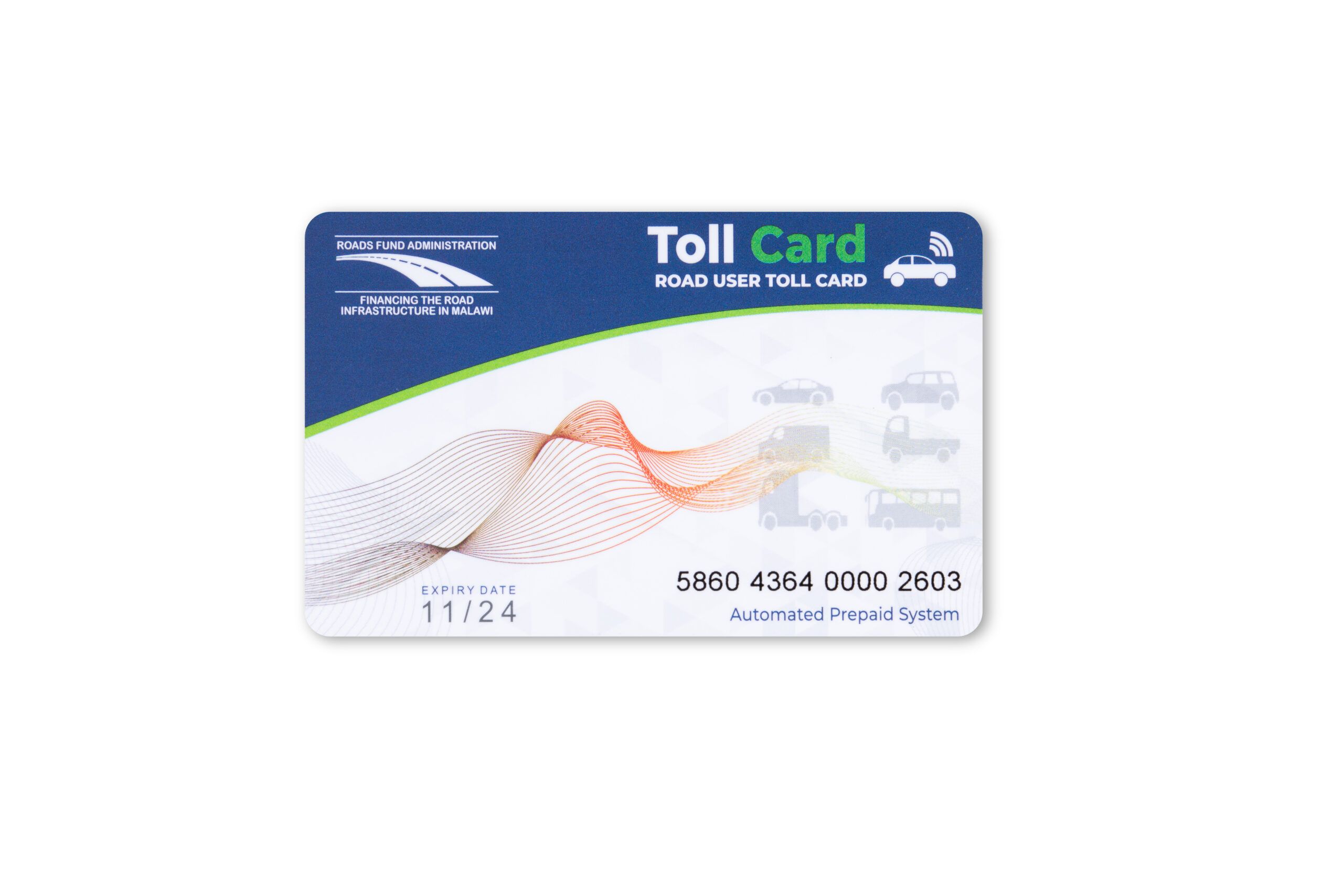

Electronic Toll Collection Cards
Loyalty and Reward Cards
Closed-loop Micropayment Cards
Corporate and Campus ID Cards

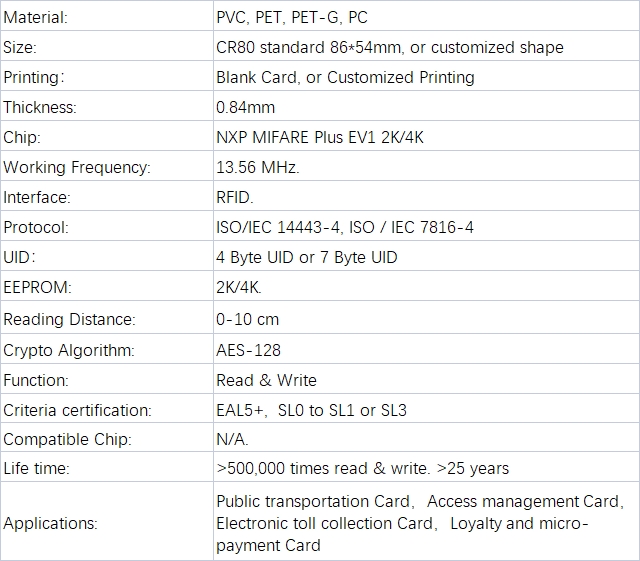

Technical Specifications
| Attribute | Details |
|---|---|
| Material | PVC, PET, PET-G, PC |
| Size | CR80 standard (86×54mm), customizable |
| Chip | NXP MIFARE Plus EV1 2K/4K (MF1P(H)x1y1) |
| Frequency | 13.56 MHz |
| Memory | 2K or 4K byte EEPROM |
| Protocol | ISO/IEC 14443-3 |
| Certification | Common Criteria EAL5+ |
| Security Features | AES encryption, Random ID, Proximity check |
| Functionality | Read and Write |
FAQ
Q: What’s the difference between EV1 and Classic versions?
EV1 adds AES-based security, Random ID, and proximity check while retaining backward compatibility for smooth migration from MIFARE Classic.
Q: Can this card support multi-application environments?
Yes, it supports multiple sectors and diversified application logic, making it suitable for both transport and access control on a single card.
Q: Is this card compatible with regular card printers?
Absolutely. DCCO Tech’s blank cards are full-panel printable and compatible with all mainstream ID card printers.
