NXP Hitag 1 Card

The NXP HITAG 1 card is a low-frequency RFID transponder operating at 125 KHz, offering reliable read/write capabilities for data management. Its highly integrated design eliminates the need for additional components beyond an external coil, making it a cost-effective and straightforward solution. DCCO Tech manufactures full-panel printable HITAG 1 blank cards, compatible with all standard ID card printers, allowing seamless personalization for various industrial and commercial applications.

125 kHz operating frequency, stable and reliable

Integrated transponder design, requiring minimal components

Fully printable card surface, supporting custom printing

Compatible with PVC, PET, PET-G, and PC materials



Click to consult

Description

The NXP HITAG 1 card is a low-frequency RFID transponder operating at 125 KHz, offering reliable read/write capabilities for data management. Its highly integrated design eliminates the need for additional components beyond an external coil, making it a cost-effective and straightforward solution. DCCO Tech manufactures full-panel printable HITAG 1 blank cards, compatible with all standard ID card printers, allowing seamless personalization for various industrial and commercial applications.

Key Features

  1. Operates at 125 KHz with reliable read/write functionality

  2. Integrated transponder design requiring minimal components

  3. Ideal for logistics, tracking, and industrial systems

  4. Full-panel, printable card surface for custom printing

  5. Compatible with PVC, PET, PET-G, and PC materials

  6. Cost-effective solution for secure RFID applications

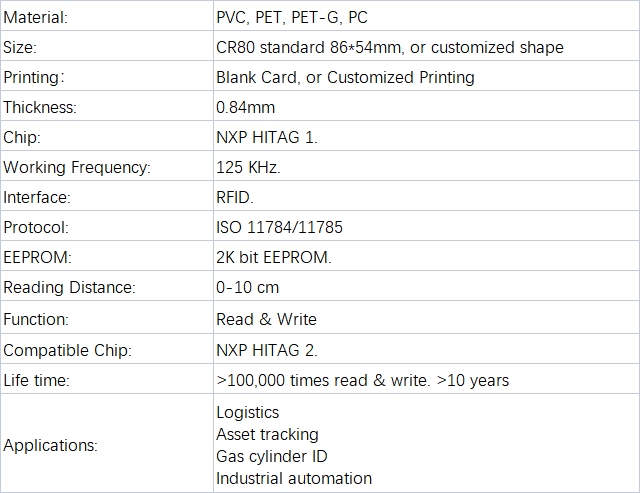

Product Parameters

NXP Hitag 1 Card
Material PVC, PET, PET-G, PC
Size CR80 standard 86×54mm, or customized shape
Printing Blank Card, or Customized Printing
Thickness 0.84mm
Chip NXP HITAG 1
Working Frequency 125 KHz
Interface RFID
Protocol ISO 11784 / 11785
EEPROM 2K bit EEPROM
Reading Distance 0–10 cm
Function Read & Write
Compatible Chip NXP HITAG S256 / S2048
Lifetime >100,000 read/write cycles, >10 years
Certifications & Approvals EMVCo, CC EAL4+
Applications Logistics, Asset Tracking, Gas Cylinder ID, Industrial Automation

Application Areas

Application Areas

Logistics and Inventory Management、Asset Tracking Systems、Gas Cylinder Identification、Industrial Automation Solutions

Technical Specifications

FAQ

Q1: What is the main advantage of using HITAG 1 over other low-frequency RFID chips?
A: HITAG 1 offers a simple, integrated design that is cost-effective and reliable for many industrial use cases.

Q2: Can HITAG 1 cards be printed directly?
A: Yes, our HITAG 1 cards support full-panel printing and are compatible with most ID card printers.

Q3: Is this chip suitable for high-durability environments?
A: Yes, it is designed for rugged industrial applications like logistics and gas cylinder management.

Q4: Does HITAG 1 support data writing as well as reading?
A: Absolutely. HITAG 1 supports both read and write operations for flexible data handling.
