NXP Desfire Light Card

NXP MIFARE DESFire Light is a contactless smart card chip designed specifically for convenient integration into both new and legacy systems. Suitable for a wide range of secure service scenarios, it is characterized by its efficiency, strong compatibility, and ease of extensibility. The chip features 640 bytes of available memory, making it ideal for single-application systems. Furthermore, it is fully compatible with the MIFARE DESFire EV2 standard. MIFARE DESFire Light can be configured to comply with the NFC Forum Type 4 Tag standard, thereby enabling seamless interoperability with the vast majority of mobile devices that support contactless reading capabilities, enhancing both user experience and device compatibility.

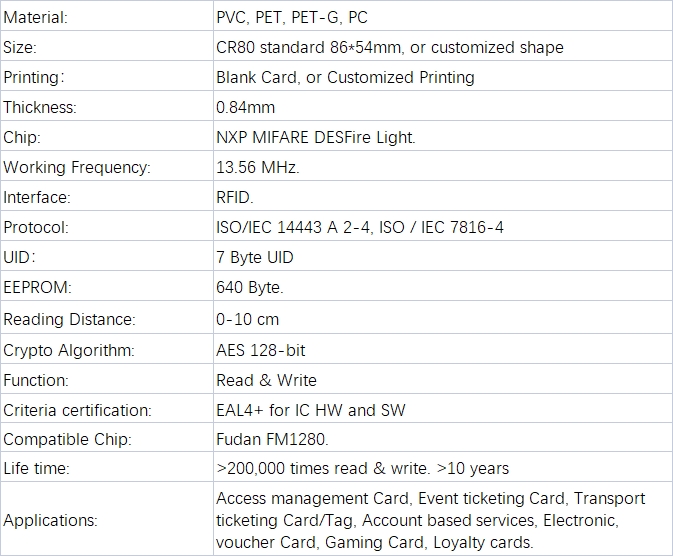

Product Details:

NXP MIFARE DESFire Light Card
Material PVC, PET, PET-G, PC
Size CR80 standard 86×54mm, or customized shape
Printing Blank Card, or Customized Printing
Thickness 0.84mm
Chip NXP MIFARE DESFire Light
Working Frequency 13.56 MHz
Interface RFID
Protocol ISO/IEC 14443 A 2-4, ISO/IEC 7816-4
UID 7 Byte UID
EEPROM 640 Byte
Reading Distance 0-10 cm
Crypto Algorithm AES 128-bit
Function Read & Write
Criteria Certification EAL4+ for IC HW and SW
Compatible Chip Fudan FM1280
Lifetime >200,000 times read & write, >10 years
Applications Access management Card
Event ticketing Card
Transport ticketing Card/Tag
Account-based services
Electronic Voucher Card
Gaming Card
Loyalty cards
Click to consult

Description

Technical Specifications:

• Memory Capacity: 640 bytes (equivalent to MIFARE Classic 1K)
• Communication Interface: Contactless HF (High Frequency, 13.56 MHz)
• File System: Predefined structure for simplified integration
• NFC Compatibility: Configurable as an NFC Forum Type 4 Tag
• Security: Supports encrypted communication and access control mechanisms
• Compatibility: Fully compatible with MIFARE DESFire EV2

Why Choose the NXP MIFARE DESFire Light?

This card offers an excellent balance of speed, security, and ease of integration, making it ideal for single-provider services. Its high NFC compatibility and fast processing make it perfect for modern digital systems that require seamless user experiences.

Application Areas

• Public Transportation Ticketing Systems (e.g., single-trip/short-term passes)

• Access Control and Employee ID Cards

• Campus All-in-One Cards (Dining, Library Services, Attendance Tracking)

• Event Tickets and Temporary Visitor Credentials

• Mobile Device Pairing and Secure Authentication (via NFC)

Application areas 3

Technical Specifications

Attribute Details
Material PVC, PET, PET-G, PC
Size CR80 standard (86×54mm), customizable
Chip NXP MIFARE DESFire Light (MF2DL(H)x0)
Frequency 13.56 MHz
Memory 640 bytes EEPROM
Protocols ISO/IEC 14443-2/3/4 A
Functions Read/Write, High-speed NFC Communication

FAQ

Q: Is this card compatible with NFC-enabled smartphones and devices?
Yes, it fully supports NFC devices that are compatible with ISO/IEC 14443 A standards.

Q: Can I customize the card’s design?
Yes, DCCO Tech offers full-panel printable cards compatible with all major ID card printers for easy customization.

Q: What type of applications is this card suitable for?
It is ideal for access control, ticketing, digital payments, loyalty programs, and other single-entity services requiring secure, fast transactions.
