EM4450/EM4550 Chip RFID Card

The EM4450/EM4550 is a 125 kHz CMOS-based RFID chip with reliable read/write capabilities and multiple data encoding formats, including Manchester encoding, biphasic encoding, and PSK encoding. Designed for secure data storage and seamless access control, it is ideal for hotel, entertainment, and identification systems.

  1. 125 kHz operating frequency for reliable read/write functionality
  2. Supports Manchester encoding, biphasic encoding, and PSK encoding formats
  3. CMOS technology design for stable performance
  4. Compatible with full-panel ID card printers, allowing for personalization
  5. Available in PVC, PET, PET-G, and PC materials
  6. Customizable CR80 standard size (86 × 54 mm)
Click to consult

Descripción

The EM4450/EM4550 is an RFID chip based on 125 kHz CMOS technology. Unlike basic RFID cards, this model features read/write capabilities, making it ideal for systems requiring frequent card data updates, such as membership cards, hotel cards, or gas card systems.

It supports multiple data encoding formats, including Manchester encoding, biphasic encoding, and PSK encoding, ensuring seamless integration with various existing RFID infrastructures. The EM4450/EM4550 utilizes low-power CMOS technology, providing stable performance and a longer lifespan even under frequent use.

Key Features

  1. 125 kHz operating frequency with read/write capabilities for dynamic data storage.
  2. Supports Manchester encoding, biphasic encoding, and PSK encoding, ensuring system interoperability.
  3. CMOS design for low power consumption and good signal stability.
  4. Compatible with full-board card printers, supporting customized branding and variable data printing.
  5. Multiple material options are available: PVC is suitable for general purposes; PET and PET-G offer enhanced flexibility and environmental durability; PC is heat- and abrasion-resistant.
  6. The standard CR80 card size (86 × 54 mm) is compatible with most ID card systems and card accessories.
  7. Custom printing and coding services are available for bulk orders.

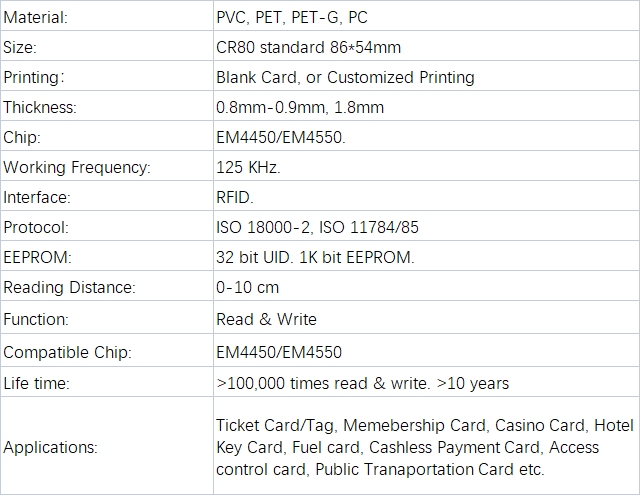

Product Parameters

EM4450 EM4550 Card
Material PVC, PET, PET-G, PC
Size CR80 standard 86×54mm
Printing Blank Card, or Customized Printing
Thickness 0.8mm–0.9mm, 1.8mm
Chip EM4450 / EM4550
Working Frequency 125 KHz
Interface RFID
Protocol ISO 18000-2, ISO 11784/85
EEPROM 32-bit UID, 1K-bit EEPROM
Reading Distance 0–10 cm
Function Read & Write
Compatible Chip EM4450 / EM4550
Life Time >100,000 read/write cycles, >10 years
Applications Ticket Card/Tag, Membership Card, Casino Card, Hotel Key Card, Fuel Card, Cashless Payment Card, Access Control Card, Public Transportation Card

Application Areas

Hotel Key Cards、Access Control Systems、Membership cards 、Casino Cards、Staff and Student Identification Cards、Public Transportation and Ticketing、Cashless Payment and Fuel Cards

Application areas of EM4450 EM4550 cards

FAQ

1. What is the main difference between EM4450 and EM4550?
The EM4550 is an enhanced version of the EM4450, offering the same operating frequency and protocol compatibility, but with an extended memory capacity and advanced data protection features for higher-security applications.

2. Are EM4450/EM4550 cards compatible with standard 125 KHz RFID readers?
Yes. These chips are fully compatible with most 125 KHz RFID readers and encoders that support Manchester, Biphase, or PSK data coding formats.

3. Can the cards be printed using regular ID card printers?
Absolutely. DCCO Tech EM4450/EM4550 blank cards are full-panel printable and work perfectly with dye-sublimation and retransfer printers for on-demand personalization and branding.

4. What materials are available for these cards?
You can choose from PVC, PET, PET-G, or PC materials depending on your usage environment. PET-G and PC options are recommended for applications requiring higher durability or temperature resistance.

5. Can DCCO Tech provide pre-encoded or custom-printed cards?
Yes. We offer custom encoding services, printing with your design or logo, and chip pre-programming according to your system requirements.
