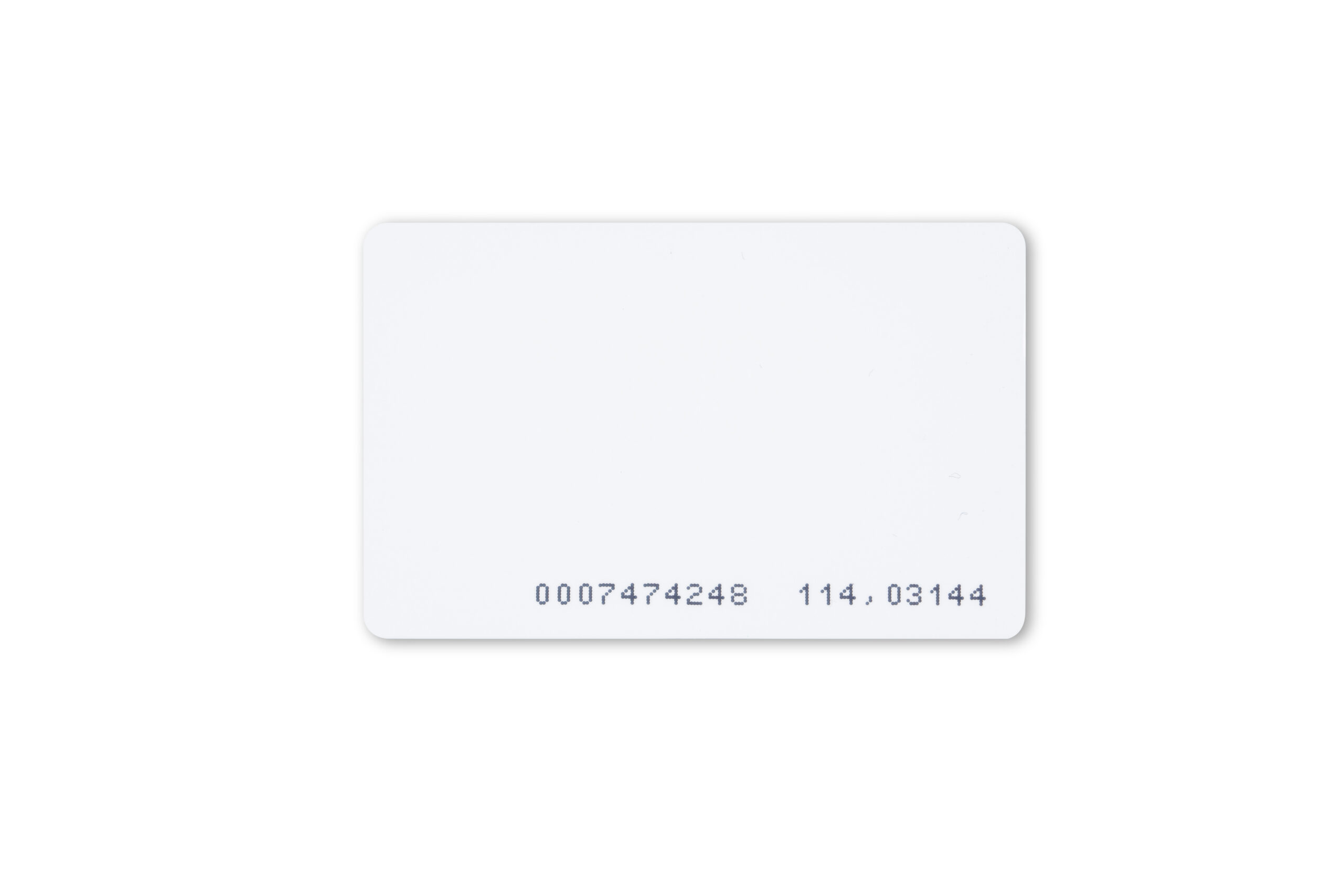

EM4305 rewriteable blank card

The EM4305 is a CMOS-based RFID chip operating at 134.2 kHz, making it ideal for low-cost solutions, such as animal tags. We offer fully printable EM4305 blank cards and support customer customization.

Key Features

  1. Operating frequency: 134.2 kHz, with read/write capabilities
  2. Supports Manchester encoding, biphasic encoding, and PSK encoding
  3. Utilizes CMOS technology for high efficiency and stable performance
  4. Fully printable for easy card customization
  5. Standard CR80 size available, materials optional
Click to consult

Descripción

The EM4305 is a low-frequency (134.2 kHz) RFID chip based on CMOS technology, featuring read and write capabilities. It is ideal for low-cost solutions such as animal tagging and lightweight access control. The EM4305 utilizes mature CMOS technology, offering both low power consumption and reliable RF performance. DCCO Tech provides a full-board printable EM4305 blank card (CR80 format) integrated with this chip, supporting standard ID card personalization workflows for rapid mass production.

Key Features

Operating Frequency: 134.2 kHz (ISO 11784/11785 band)

Read/Write: Supports user data read and write operations, meeting flexible application needs

Encoding Support: Manchester encoding, biphase encoding, and PSK; encoding options, compatible with various card readers

CMOS Technology: Low cost, stable operation, low power consumption

Card Specifications: CR80 full-board printable blank card, compatible with common card printers

Optional Materials: PVC, PET, PET-G, PC — selectable based on durability and printing requirements

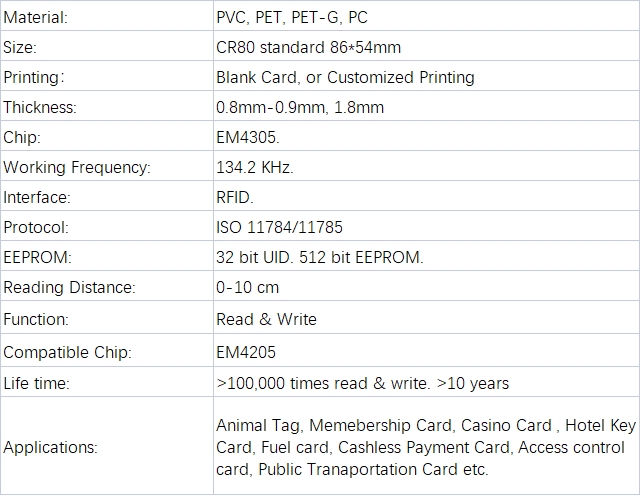

Product Parameters

EM4305 Card
Material PVC, PET, PET-G, PC
Size CR80 standard 86×54mm
Printing Blank Card, or Customized Printing
Thickness 0.8mm – 0.9mm, 1.8mm
Chip EM4305
Working Frequency 134.2 KHz
Interface RFID
Protocol ISO 11784/11785
EEPROM 32 bit UID, 512 bit EEPROM
Reading Distance 0-10 cm
Function Read & Write
Compatible Chip EM4205
Lifetime >100,000 read & write cycles, >10 years
Applications Animal Tag, Membership Card, Casino Card, Hotel Key Card, Fuel Card, Cashless Payment Card, Access Control Card, Public Transportation Card, etc.

Application Areas

Animal Tagging、Membership Cards、Casino Cards、Hotel Key Cards、Fuel Cards、Cashless Payment Cards、Access Control Cards、Public Transportation Cards

Application areas

FAQ

1. What is the difference between EM4305 and EM4205?
Both chips share the same architecture and operate at a frequency of 134.2 kHz. The EM4305 typically offers more memory and extended functions, while the EM4205 is designed for cost-sensitive applications with slightly simplified features.

2. Can EM4305 cards work with 125 kHz readers?
No. Although both are low-frequency RFID chips, the EM4305 operates at 134.2 kHz, which differs from the standard 125 kHz frequency used in EM4100-series cards. Compatibility depends on the reader’s frequency range and supported protocols.

3. Are EM4305 cards rewritable?
Yes. Unlike EM4100-series read-only cards, EM4305 supports read/write functionality. Users can update data such as ID numbers, counters, or timestamps through compatible encoders.

4. What materials are available for EM4305 cards?
DCCO Tech provides EM4305 cards in PVC, PET, PET-G, and PC materials. These options enable users to strike a balance between durability, print quality, and cost, depending on their specific application.

5. What are the typical applications of EM4305 RFID cards?
EM4305 cards are used in access control, animal identification, membership systems, and transportation cards. Their reliable performance and read/write capability make them ideal for both static and updatable ID systems.
