Which Chips Are Compatible with Proximity Cards?

In the fields of access control, identity verification, and transportation systems, one of the most critical decisions when deploying proximity cards is the choice of the chip inside the card. The right chip determines reading reliability, maintenance cycles, integration complexity, and, crucially, data security. Therefore, we will explain which chips are compatible with proximity cards and the importance of these options to engineers, integrators, and purchasing managers. You will learn which chip series are compatible with our proximity cards and the technological and operational trade-offs to consider when selecting components for membership programs, fuel cards, access control, or transportation ticketing systems.

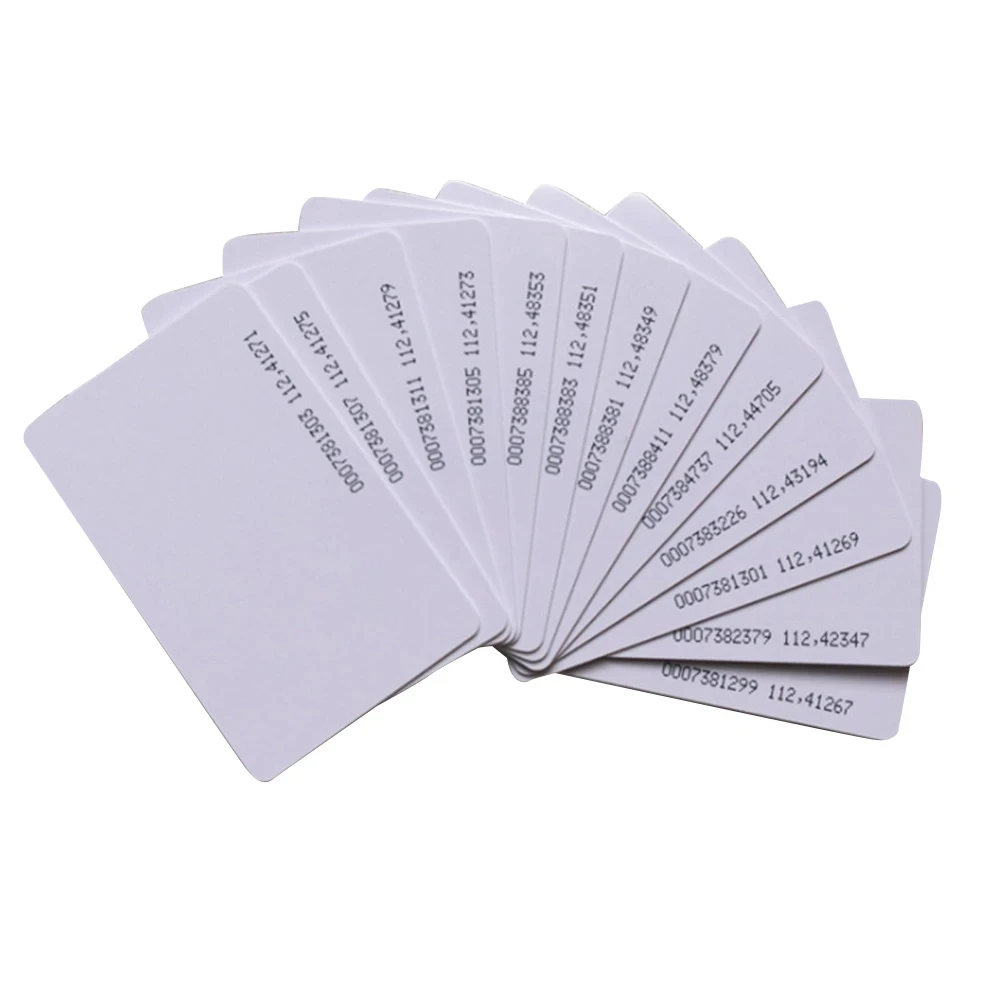

Proximity Cards: Supported Chip Series

Our proximity cards are compatible with four main low-frequency (LF) chip series: EM4100, TK4100, HT4168, and 4100D. All four chips operate in the low-frequency band (125 kHz) commonly used for proximity identification, making them compatible with a variety of off-the-shelf low-frequency readers. However, they differ significantly in implementation, support for encoding, and expected operational behaviour.

The EM4100 has long been a simple, low-cost read-only identifier, suitable for basic ID identification tasks. The TK4100 is the most representative and feature-rich member of this series: it is implemented in CMOS technology, consumes exceptionally low power, and supports multiple encoding schemes. The HT4168 and 4100D are functionally identical chip series, offering similar reading performance, and can be chosen when a specific vendor or slightly different manufacturing process is required.

When considering proximity card compatibility, the first consideration is the operating frequency: since these chips are low-frequency (125 kHz) devices, they require low-frequency antennas and readers. Secondly, consider whether the customer needs a read-only tag or one that supports stable read/write functionality; the TK4100 is particularly suitable when read/write stability and long-term data integrity are crucial. Finally, the allowed encoding and modulation schemes (e.g., Manchester or PSK) affect reader configuration and integration; not all readers support all encodings by default, so we recommend compatibility testing before large-scale deployment.

Why the TK4100 is Often the Best Practical Choice？

The TK4100 chip strikes an excellent balance between cost, reliability, and integration flexibility. Manufactured using CMOS technology, the TK4100 chip boasts extremely low power consumption while maintaining stable operation within typical proximity ranges. They use a standard 125 kHz carrier frequency and can reliably provide unique identifiers or small writable data areas, depending on the card design. More importantly, the TK4100 supports multiple data encoding formats, including Manchester, bipolar, and PSK (Phase-Shift Keying) variants, making it compatible with a broader range of readers and legacy systems than some single-encoding chips.

From an operational perspective, the TK4100 card exhibits excellent long-term read/write stability: there is no systematic performance degradation even with repeated reads throughout the card’s lifespan. The robust embedded structure and standard card materials (PVC, PET) further enhance its durability, making it suitable for daily use in applications such as membership, transit, and fuel cards. Because of the TK4100 chip’s low procurement cost and ease of deployment, it is often the pragmatic choice when businesses require reliable near-field communication performance and a low total cost of ownership.

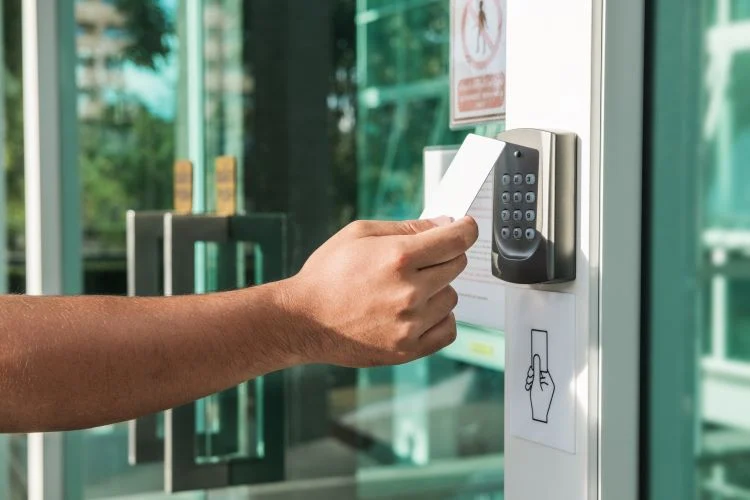

Proximity Card Compatibility Factors: Frequency, Encoding, and Data Format

Compatibility depends not only on the chip model; it hinges on three closely related technical factors: carrier frequency, modulation/encoding, and data format/structure.

Carrier Frequency: EM4100, TK4100, HT4168, and 4100D are low-frequency chips designed for the 125 kHz band. Readers must support low-frequency operation to read these chips. If your reader is a high-frequency (13.56 MHz) model, these low-frequency chips will not work.

Modulation and Encoding: LF chips use modulation schemes to transmit data from the tag to the reader. Standard encoding methods for LF-series chips include Manchester encoding and various PSK and bipolar variants. Not all readers have all encodings enabled by default. Therefore, confirm that your reader can decode the chip’s encoding, or configure the firmware accordingly. For TK4100 cards, their broad support for Manchester, bipolar, and PSK encodings makes them easier to match with firmware-configurable readers.

Data Format and Payload: Some chips provide only a fixed, unique ID, while others allow users to write a small amount of data. Furthermore, the bit length and frame format of the UID (e.g., 32-bit or 40-bit) are essential, as backend systems and access controllers require data of a specific length. It is crucial to verify the bit length and frame format during laboratory testing.

Reader Hardware and System Integration Best Practices

Integrating proximity sensing card chips into a reliable system requires attention to both reader hardware and system-level engineering. First, choose a reader with configurable demodulation and multiple decoding profiles. Readers that allow specifying carrier sensitivity, encoding type, and timeout parameters can reduce the need for custom firmware development and improve compatibility with different chip families (EM4100/TK4100/HT4168/4100D), thereby increasing reliability.

Second, antenna size and placement significantly impact reading range and stability. Low-frequency (LF) systems typically have shorter reading distances than high-frequency (HF) systems; antenna coupling, reader power, and environmental metal structures all play a crucial role. During integration, conduct field testing in typical environments and adjust antenna tuning and reader power within regulatory limits to stabilize reading performance.

Third, establish a configuration workflow for card encoding and UID management. Maintain a secure registry of assigned UIDs, associating each UID with a backend identity or account, and implement strict processes when exporting or importing UID lists between production lines and deployed systems. If cards need to be written in the field, ensure that the reader and card firmware reliably handle write confirmation and retry mechanisms.

Finally, monitor and record reading statistics during the pilot phase. This data can tell you whether the reader in the actual application can decode the expected encoding, whether collisions or missed reads occur, and whether environmental interference requires mitigation.

Why Low-Frequency Chips are Suitable for Multiple Application Scenarios

Low-frequency near-field communication chips (especially the TK4100) combine the advantages of low cost, high reliability, and ease of integration, making them widely applicable in various application areas. Typical applications include:

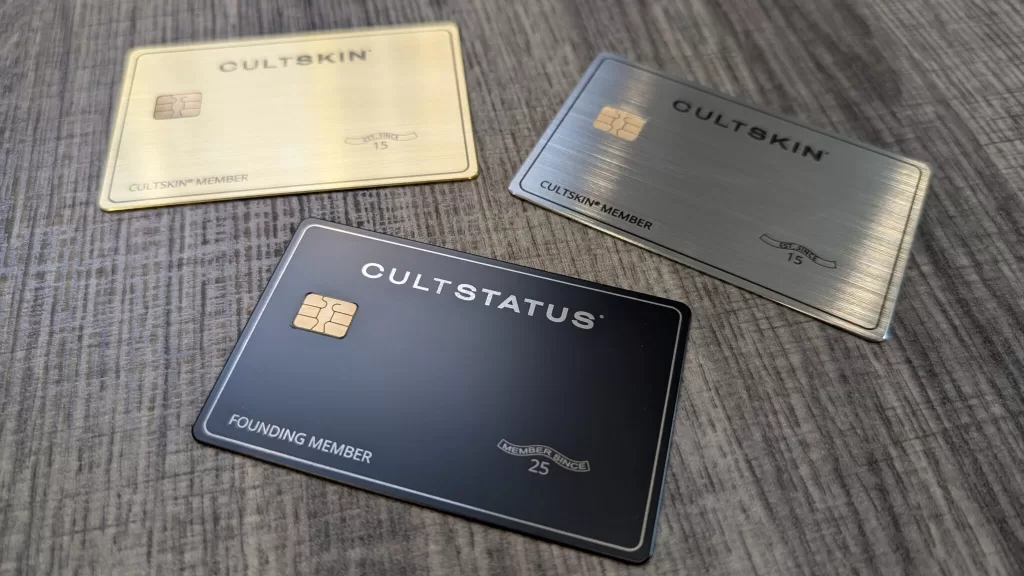

Membership and Loyalty Cards: LF chips provide a stable UID for membership identification and are cost-effective for high-volume production. The durability and low power consumption of the TK4100 chip extend the lifespan of frequently used cards.

Fuel and Fleet Cards: LF proximity cards offer robust read performance across various field conditions, making them suitable for gas stations and vehicle readers where reliability is more important than encryption.

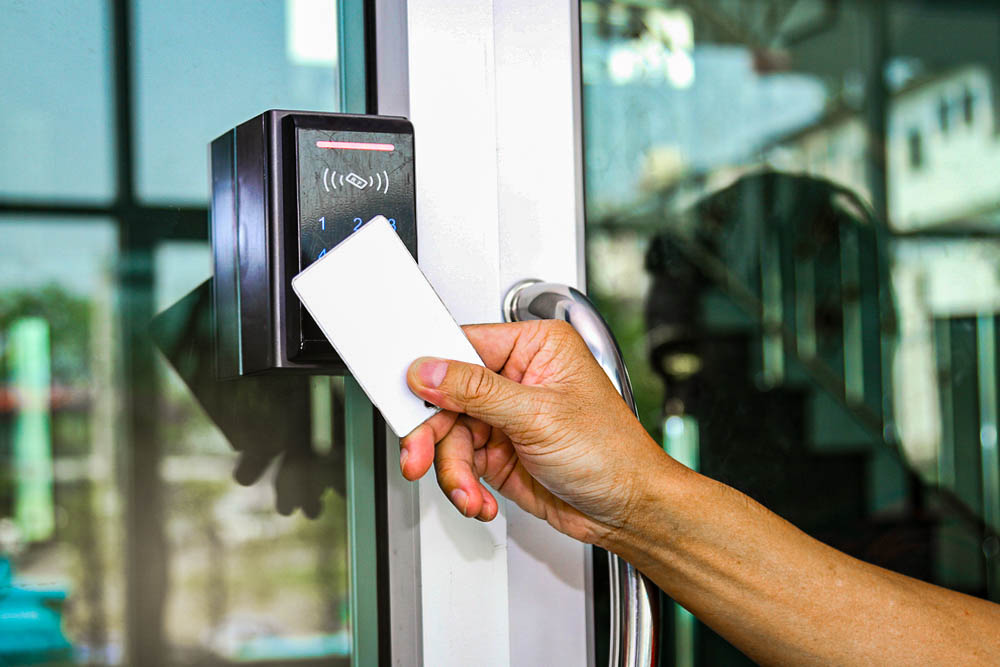

Access Control Cards: Many traditional access control systems use 125 kHz readers. Replacing the backend without changing the card system is costly; TK4100 and EM4100 cards provide a plug-and-play solution for organizations looking to update their credentials cost-effectively.

Making the Right Chip Deployment

Choosing the right chip is crucial for the performance, reliability, and long-term value of any proximity card system. EM4100, TK4100, HT4168, and 4100D are all fully compatible with 125 kHz proximity cards, making them suitable for a variety of identification and access control applications. Among these, the TK4100 chip is the most versatile option due to its low power consumption, durable CMOS design, stable long-term read/write performance, and support for multiple data encoding formats. These characteristics make TK4100-based proximity cards particularly suitable for membership programs, access control, fuel cards, and public transportation systems. Of course, if only minimum cost and a fixed read-only ID are required, the EM4100 remains a practical choice. HT4168 and 4100D can be used interchangeably depending on the supplier, but it’s essential to check the specific specifications and test with your reader matrix.
