Is the School ID Card with FM11RF08 Fully Compatible with MIFARE Classic 1K EV1 S50?

Choosing the right contactless chip for a campus identification system determines the ease of integration with existing card readers, the reliability of data storage and transmission, and the ability to meet students’ daily needs on campus. We will address a frequently asked question from school ID card suppliers: Is a school ID card using the FM11RF08 chip fully compatible with NXP MIFARE Classic 1K EV1 (S50)? The answer is yes. The FM11RF08 is a 13.56 MHz contactless IC compliant with the ISO/IEC 14443 Type A standard, and is interoperable with MIFARE Classic 1K EV1 S50 readers and their ecosystem. It supports standard read/write operations, provides approximately 1 KB of user memory, and implements authentication/encryption mechanisms to ensure secure campus use.

The FM11RF08 on the school ID card complies with the MIFARE Classic 1K EV1 S50 standard

At the protocol level, compatibility depends on shared radio frequency characteristics and adherence to ISO/IEC 14443 Type A framing rules. The FM11RF08 operates at 13.56 MHz and follows the 14443-A modulation and anti-collision sequence, so it responds to S50 readers in the same way as a MIFARE Classic 1K EV1 tag. In practice, this means that standard access control systems, turnstiles, and vending/payment terminals configured to accept MIFARE Classic 1K EV1 (S50) can detect, authenticate, and read/write FM11RF08 cards without code changes.

The memory architecture is crucial because controllers and middleware require specific sector and block layouts. The FM11RF08 provides 1KB of EEPROM capacity (comparable to MIFARE Classic 1K). It divides it into sectors and blocks that accommodate the traditional S50 data model: some reserved blocks for storing the manufacturer UID and sector trailers, and multiple user blocks for storing ID numbers, counters, and small data objects.

Therefore, their electrical, protocol, and memory-level interfaces are highly consistent. For procurement and deployment, if your campus infrastructure already supports MIFARE Classic 1K EV1 S50, then school ID cards with FM11RF08 can serve as a plug-and-play alternative from a reader interoperability perspective.

School ID Card Security and Authentication Features

Security is a primary consideration for any campus identification system, mainly when cards are used to control building entry, laboratory access, or as a payment instrument. The FM11RF08 supports on-card authentication and encryption steps consistent with how MIFARE Classic systems operate. In school ID card deployments, these cards typically employ multi-step authentication protocols, binding sector access keys to reader credentials before allowing sensitive operations.

Because the encryption and authentication mechanisms effectively prevent unauthorized readers from easily reading or tampering with protected sectors, the FM11RF08 significantly raises the bar against cloning when used for school ID cards. Combined with a unique UID and sector-level keys, illegal duplication becomes much more difficult. Therefore, the encryption and authentication features of the FM11RF08 make it suitable for secure campus environments, especially when combined with on-card protection and system-level controls.

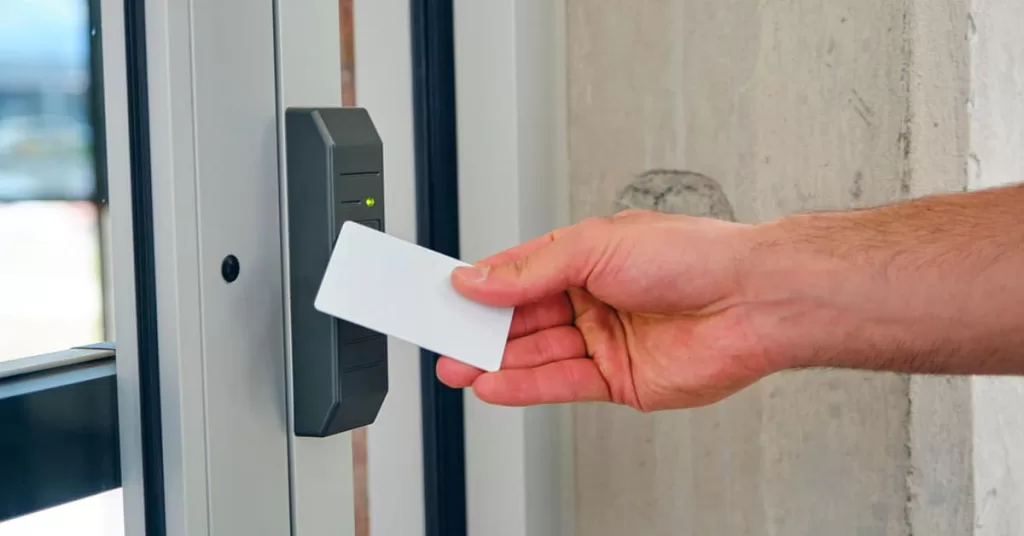

Memory, Data Structure, and Typical Campus Use Cases

Memory capacity and layout directly impact the support for campus workflows by the school ID card. The FM11RF08’s 1KB EEPROM provides sufficient space for core functionalities: unique student identifiers, access control bits for doors and laboratories, dining and vending machine balances, library status flags, and minimal personalization data. School systems typically use sector/block partitioning to isolate different functions: for example, sector 1 for physical access, sector 2 for dining accounts, and sector 3 for library services. This partitioning makes it easier to apply different keys or access rules for each function.

Since the FM11RF08 has the same memory model as the MIFARE Classic S50, many campus ID card applications can continue to function normally:

• Access Control: UID-based authentication, combined with department-level access keys, enables doors and turnstiles to verify student access rights.

• Campus Prepaid: Meal card balances can be stored in dedicated blocks, either as binary counters or simple value blocks; readers perform atomic increment/decrement operations. Multi-Application Card: 1KB of space supports lightweight reuse, where multiple services share a single physical credential.

No Software Changes Required for Integration and Deployment

One of the main operational advantages of deploying the FM11RF08 school ID card is minimal disruption to existing infrastructure. Because the chip conforms to the ISO 14443-A standard and uses a memory model compatible with MIFARE Classic, most campus access control systems, vendor terminals, and cafeteria POS systems can recognize the card without firmware or software changes. For system administrators and procurement teams, this compatibility reduces deployment risk and shortens time-to-value. Therefore, typical school card deployments can treat the FM11RF08 card as a practical direct replacement for MIFARE Classic S50 cards. This makes the FM11RF08 a pragmatic choice for campuses looking to move away from proprietary chips or collaborate with FM11RF08 chip suppliers.

More Durable Physical Structure and Personalization

Beyond the silicon chip, a practical school ID card must also withstand the rigors of daily student life. The FM11RF08 chip is typically embedded in a PVC card, a material that is robust, waterproof, and able to withstand the wear and tear and the humidity of everyday campus life. Additionally, the card body supports photo and logo printing, signature panels, and barcodes or magnetic stripes (if compatibility with older systems is required). Furthermore, lamination and edge sealing processes protect the chip, ensuring the card remains functional throughout the academic year.

The details of durability are also crucial for operational costs; a well-made school ID card with proper lamination effectively prevents fading and delamination, maintaining a clear and readable UID even after years of wear. Customization options for the physical structure include:

• Surface Printing Options: Full-color photos, UV-cured inks for high-quality portraits.

• Tamper-Resistant Features: Holograms, UV inks, or laser engraving for anti-tampering/visual verification.

• Environmental Ratings: Ensuring the card material meets the institution’s humidity and temperature exposure requirements.

In practice, school ID cards equipped with the FM11RF08 chip and made of PVC material provide the robustness required for campus use while enabling rich identity and personalization features.

Fully compatible and plug-and-play

When school ID cards utilize the FM11RF08 chip, the campus gains a compact, standards-compliant contactless solution that is interoperable with the widely used MIFARE Classic 1K EV1 S50 ecosystem. FM11RF08 student ID cards are compatible with existing S50 infrastructure, providing the memory and authentication capabilities required for standard campus services, and offer straightforward deployment, minimizing disruption while maximizing campus functionality.
