Does the NXP JCOP 4 P71 J3R180 support cryptocurrency trading cards?

In the era of physical cryptographic credentials, the question is no longer whether keys can be stored on a smart card, but rather whether keys can be stored securely, used conveniently, and integrated with existing payment and identity ecosystems. NXP specifically designed the JCOP 4 P71 J3R180 platform for Java Card smart cards, offering a hardware root of trust, dual-interface access (contact and contactless), and large-capacity non-volatile memory (180K EEPROM). These features make it ideal for cryptocurrency trading cards that require secure key storage, transaction signing, and interoperable contactless interaction.

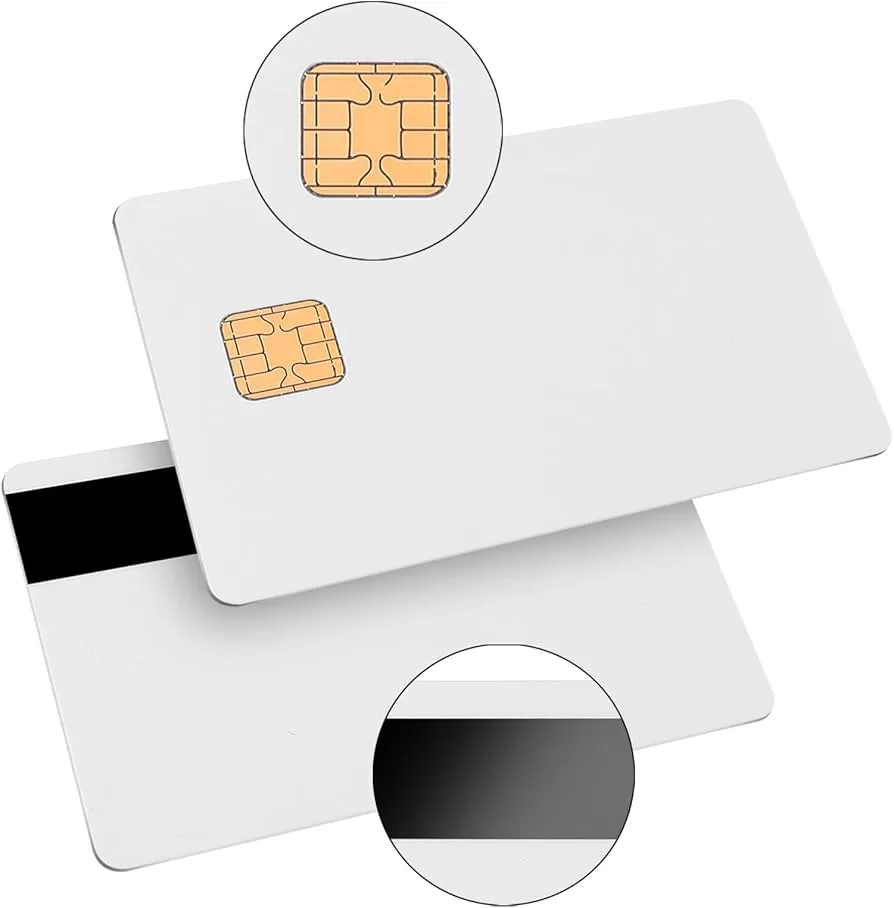

JCOP 4 P71 J3R180 Technology in Cryptocurrency Trading Cards

The NXP JCOP 4 P71 J3R180 is a Java Card/GlobalPlatform-based secure element optimized for payment and identity applications. From a system perspective, it offers the following features:

Dual-interface functionality: Supports both ISO 7816 contact and ISO 14443 contactless interfaces, allowing for chip insertion for card issuance and daily use via NFC/tap.

Java Card and GlobalPlatform stack: Supports Java Card applets and GlobalPlatform lifecycle and security features, enabling multi-application deployment.

Large-capacity non-volatile memory: Approximately 180KB of EEPROM, allowing multiple applets, keys, and certificates to coexist on the same logical card.

Payment and EMV compatibility: The platform meets the needs of the payment ecosystem and simplifies integration with EMV or proprietary payment processes.

Hardware security features: a tamper-resistant secure element, hardware cryptographic accelerators for symmetric and asymmetric algorithms, and a hardware random number generator for secure key generation.

For cryptocurrency trading cards, these features translate directly into practical functionality: you can host wallet applications, store private keys in a secure element, sign transactions locally, and allow cardholders to verify or approve transfers by simply tapping or inserting the card.

Security Architecture and Root of Trust for Cryptocurrency Trading Cards

The security of a cryptocurrency card primarily depends on its hardware root of trust. JCOP 4 achieves this foundation through a combination of mechanisms:

Secure Key Storage: Private keys never leave the secure element. Applications request cryptographic operations (e.g., ECDSA signatures) and receive the results, not the raw key material. This prevents direct key extraction even if the host is compromised.

Hardware Cryptographic Acceleration: Dedicated hardware offloads computationally intensive tasks (ECDSA, RSA, AES), improving performance and reducing the attack surface compared to purely software implementations.

True Random Number Generation (TRNG): High-quality entropy is crucial for key generation and random number generation; JCOP devices include a hardware RNG to generate unpredictable keys and random numbers.

Secure Boot and Immutable Firmware: The platform enforces signed firmware and secure boot mechanisms to prevent the execution of unauthorized runtime code.

A well-designed cryptocurrency trading card places the private key and signing logic entirely within the secure boundary. For example, the wallet applet requires a PIN or other local verification before allowing signing operations, and the card only generates cryptographic signatures after executing secure channel and user authentication policies.

Payment, EMV, and Contactless Integration

One of the main advantages of the JCOP 4 P71 J3R180 is its deep experience in the payment systems field. This experience is significant for cryptocurrency trading cards in two ways:

First, proven contactless interoperability. Because the chip supports the ISO/IEC 14443 standard and payment-grade signaling timing, it works reliably with NFC-enabled readers and terminals worldwide. This allows users to initiate transactions or present proof of authorization with a simple tap at merchants or self-service terminals.

Second, EMV and payment ecosystem compliance. JCOP devices are designed to meet the technical requirements of payment schemes. Although EMV is a payment standard, not a cryptocurrency standard, many card issuers want their cards to support both fiat currency and cryptocurrency payments. For cards that need to interact with merchant terminals for cryptocurrency transactions, dual-interface support and EMV-compatible design can greatly simplify the actual deployment process.

Implementing Wallet Functionality on JCOP

Transforming a secure chip into a usable cryptocurrency trading card requires carefully designed applets and consideration of the user experience. The JCOP platform supports Java Card applets for blockchain wallets, which implement the core functionalities needed by users and services:

Key Generation and Import: Securely generate keys on the card using a true random number generator (TRNG), or import keys via a secure channel for managed mode. Use secure key usage policies to restrict operations.

Transaction Signing: Implement the ECDSA/EdDSA signature algorithms required by the target blockchain. Use nonces and counters for each transaction to prevent replay attacks. If multiple curves are needed, the chip’s cryptographic suite should support them.

User Authentication: User authentication must be enforced before allowing transaction signing. Consider limiting the number of transactions and locking the account after a certain number of failed attempts.

Multi-Account and Application Support: Utilize Java Card’s applet isolation and JCOP’s file structure to store multiple wallet accounts or tokens. GlobalPlatform provides secure lifecycle management, enabling you to install and remove applets on the fly in accordance with authorized policies.

Design Considerations: Blockchain wallets typically rely on deterministic key derivation methods. Implementing hierarchical deterministic (HD) wallets on the card requires careful design, as storing the master seed on the card may affect backup strategies.

Personalization, Key Management, and Lifecycle

The effectiveness of a secure card depends on its issuance and lifecycle management. JCOP supports industry-standard personalization and management workflows:

GlobalPlatform Secure Channel: Use SCP (e.g., SCP02 or SCP03) to securely install, personalize, and manage applets and keys. The secure channel protects applet-loading and card-personalization data during issuance.

Personalization Options: Personalization options include on-card key generation, certificate injection, printing cardholder identification, or configuration via a trusted terminal. For non-custodial cryptographic cards, the card should generate keys on-card and never expose them outside the secure element.

Over-the-Air Updates and Revocation: Use GlobalPlatform to update applets and revoke credentials. For lost cards, the backend must be able to block the card’s UID, preventing readers from accepting the card and avoiding the issuer’s management service from processing signature requests. Powerful Operating Model: Combining secure personalization, HSM-based key management, and rigorous revocation practices, the JCOP platform provides a production-grade foundation for cryptocurrency trading cards.

Providing a Secure and Scalable Infrastructure

The NXP JCOP 4 P71 J3R180 offers a highly secure, flexible, and industry-proven platform for cryptocurrency trading cards. With its dual-interface design, 180K EEPROM storage space, and comprehensive support for Java Card, GlobalPlatform, ISO, EMV, and major payment standards, this product provides a reliable infrastructure for secure key storage, transaction signing, and multi-application deployment. JCOP 4 effectively addresses the core security challenges faced by cryptocurrency cards.
